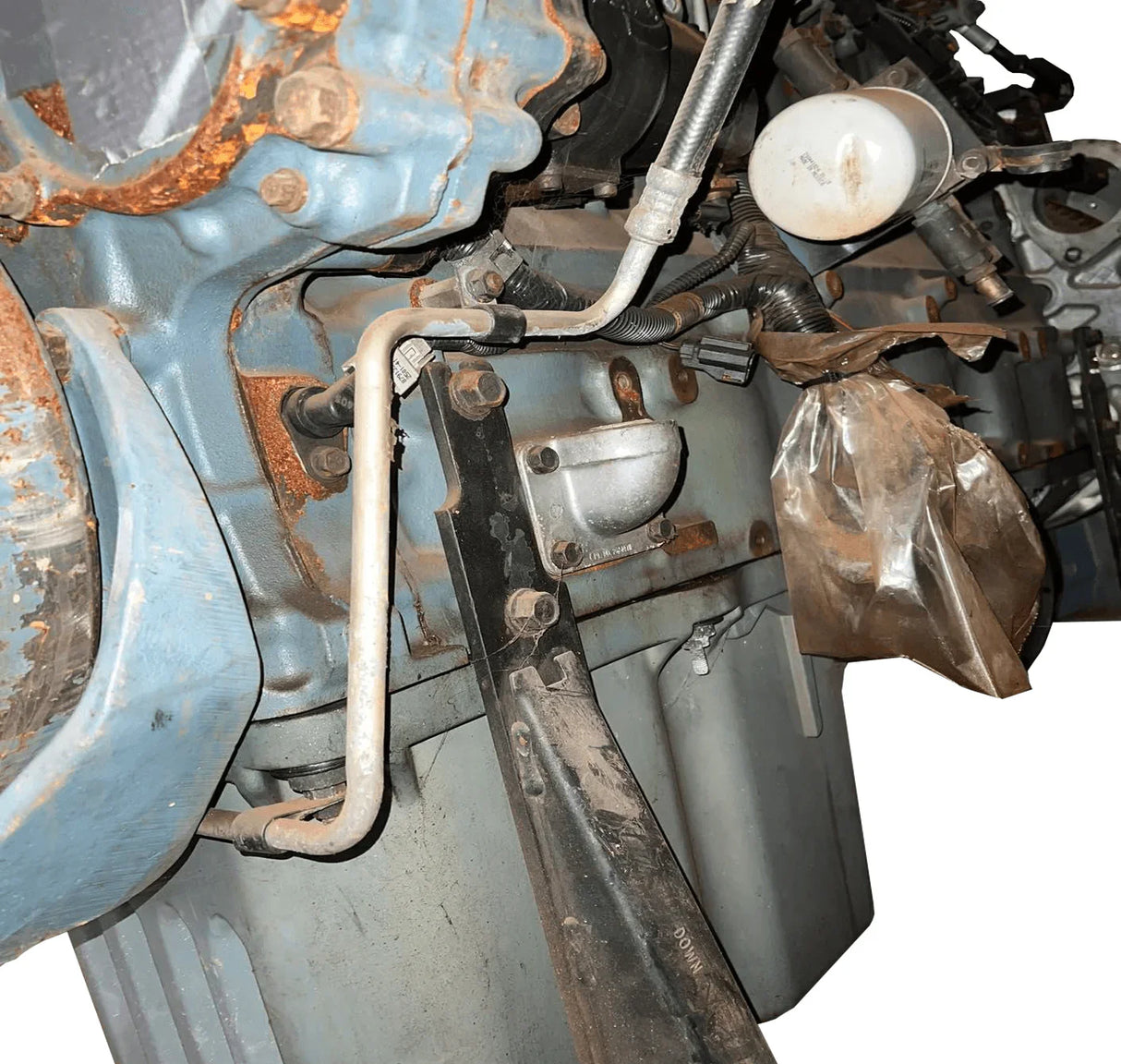

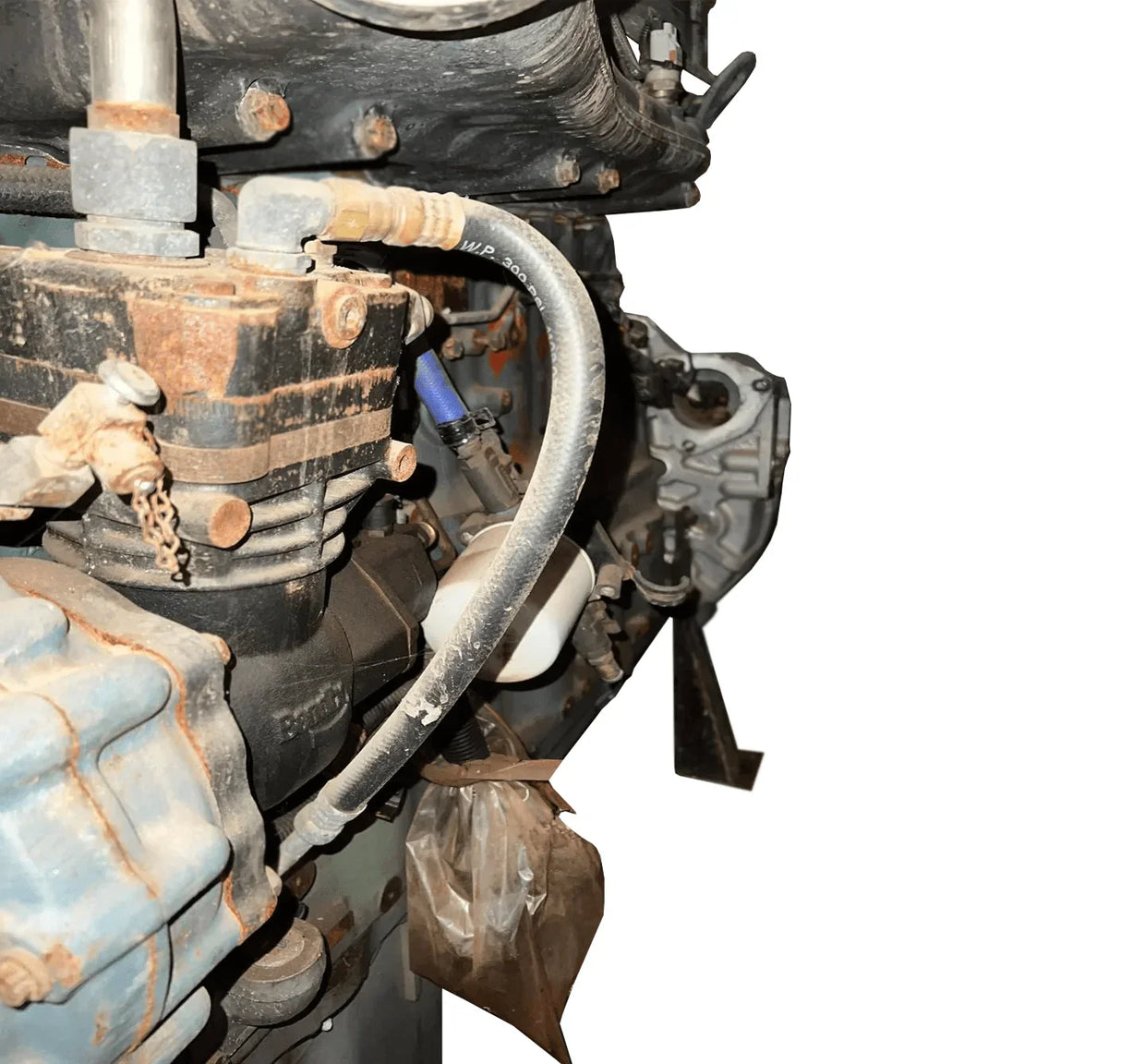

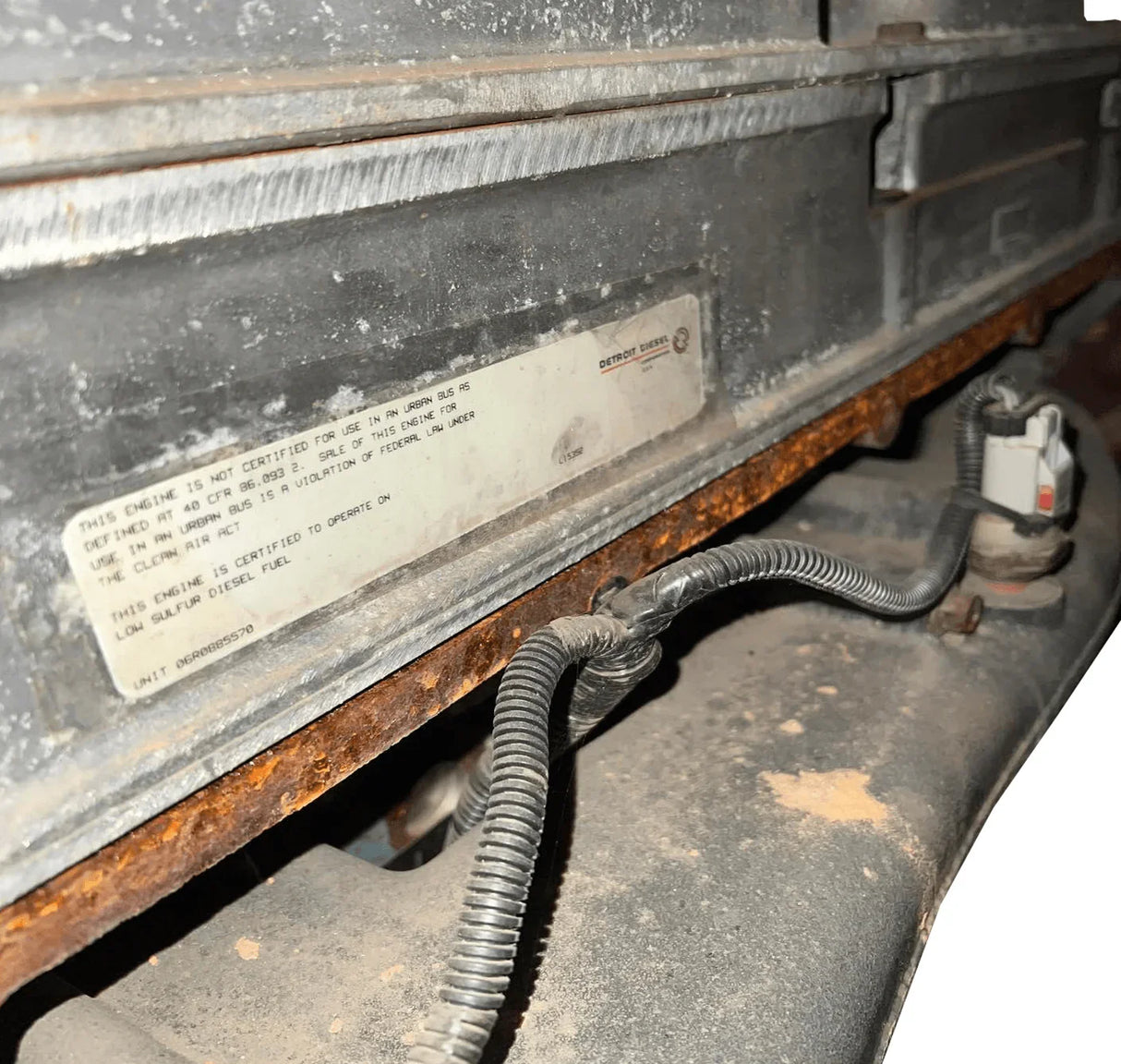

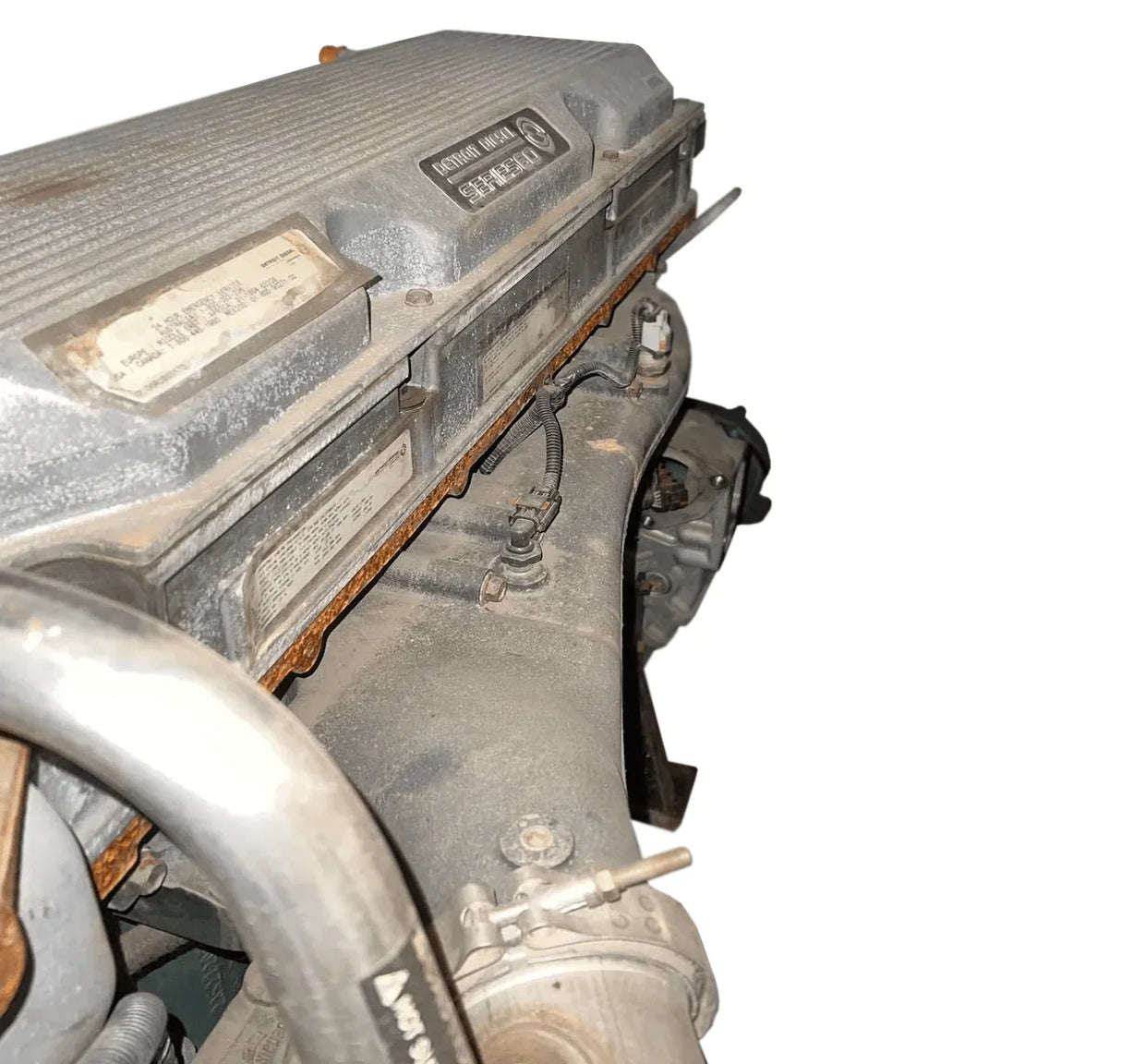

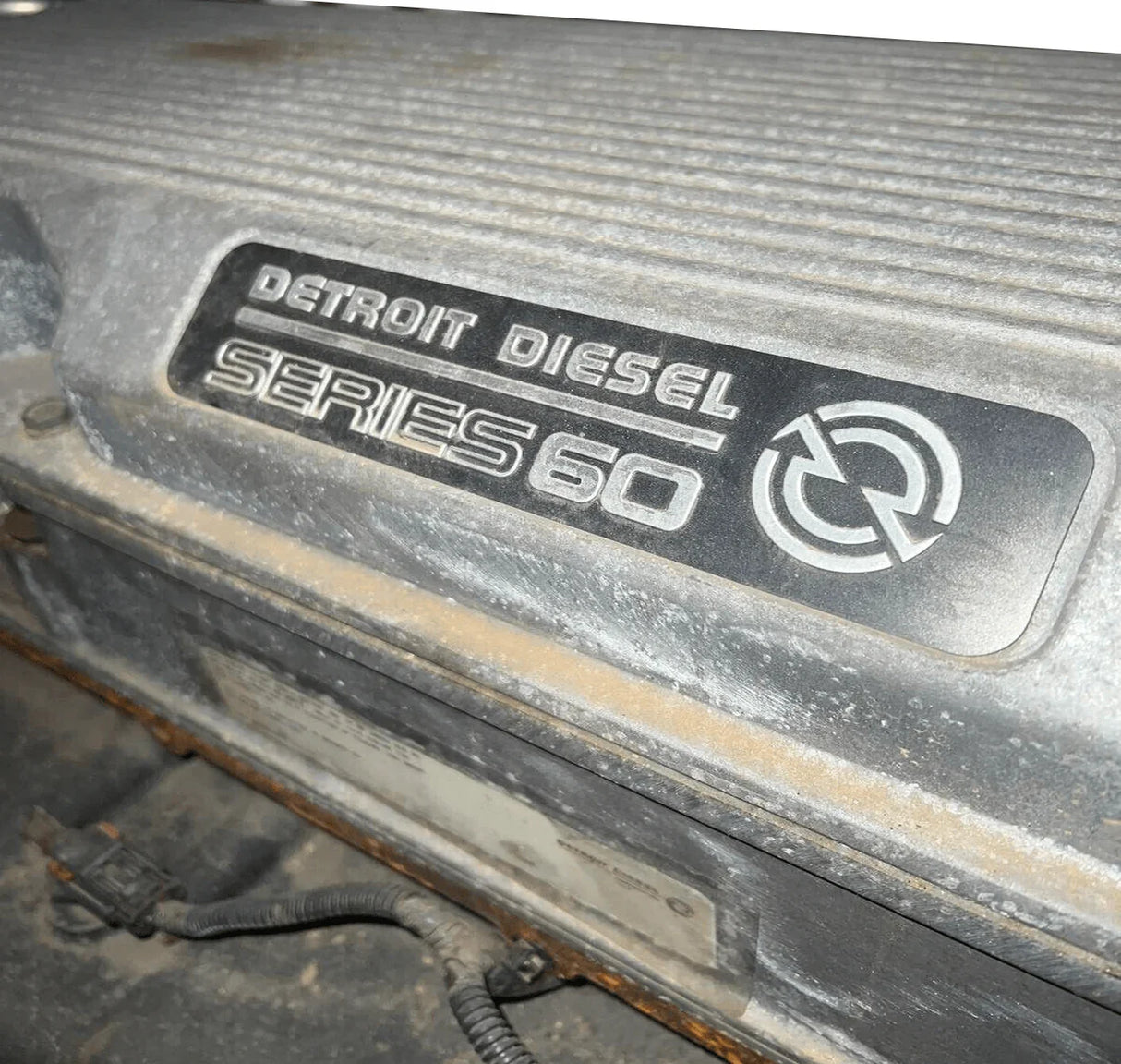

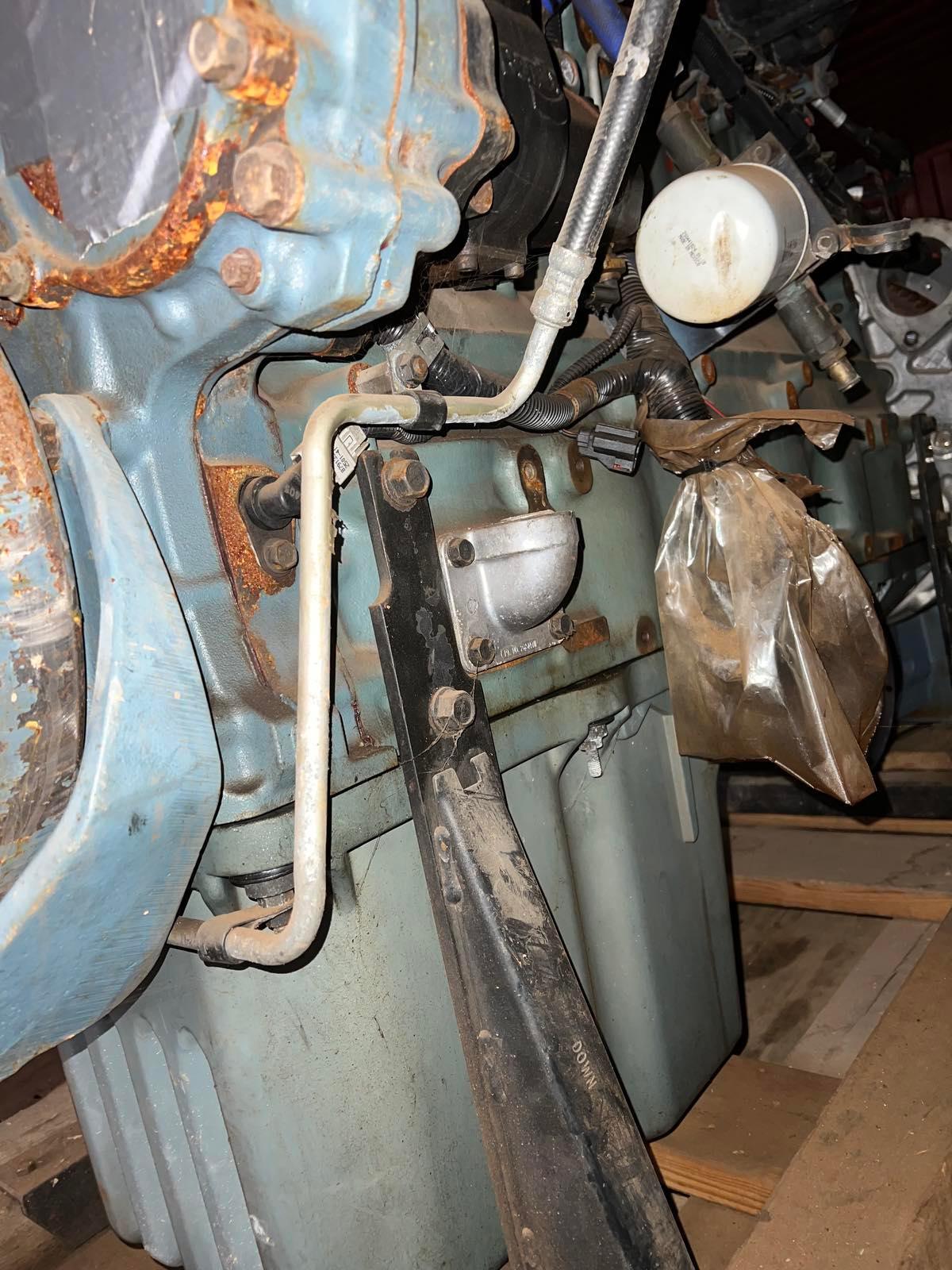

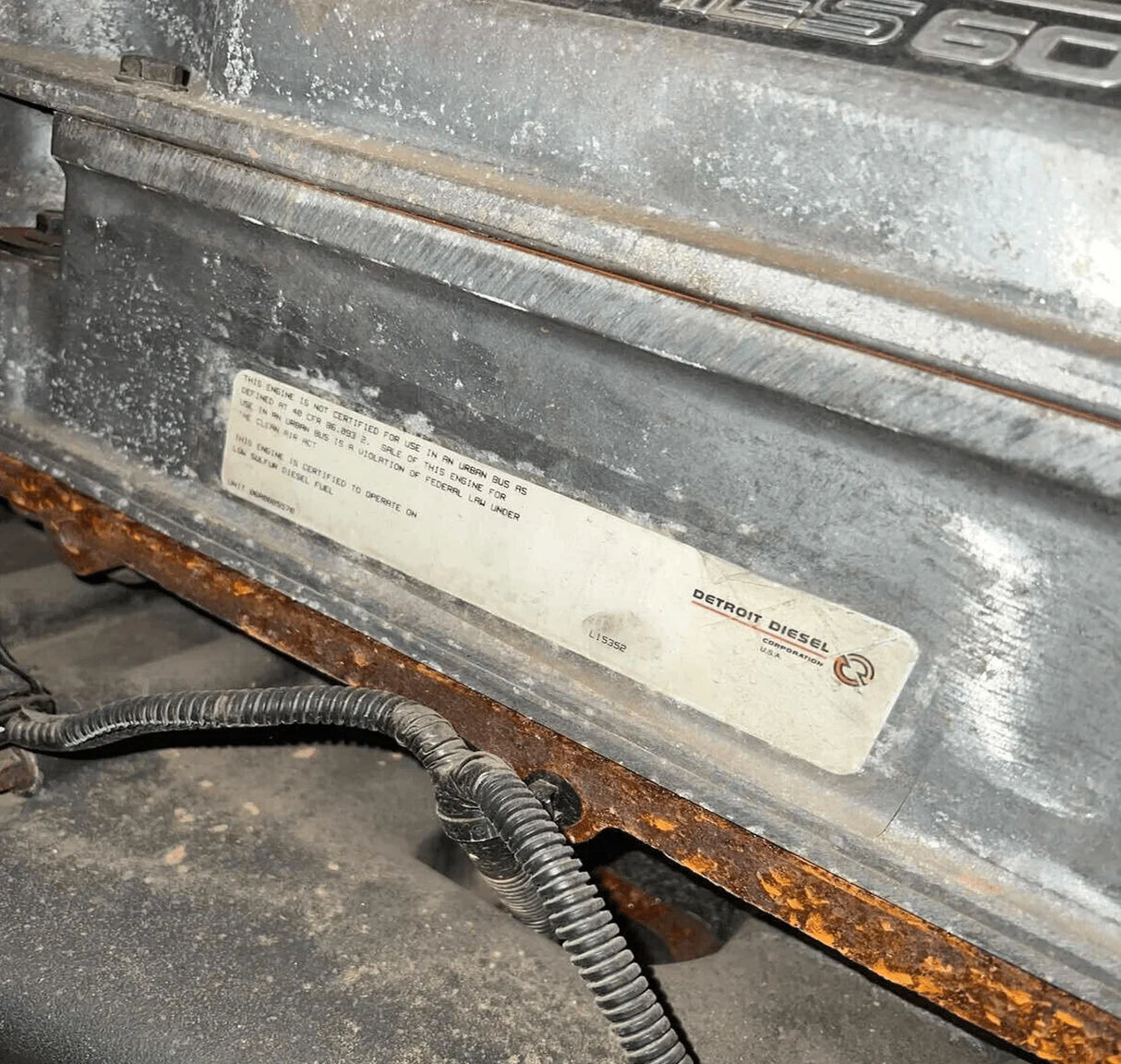

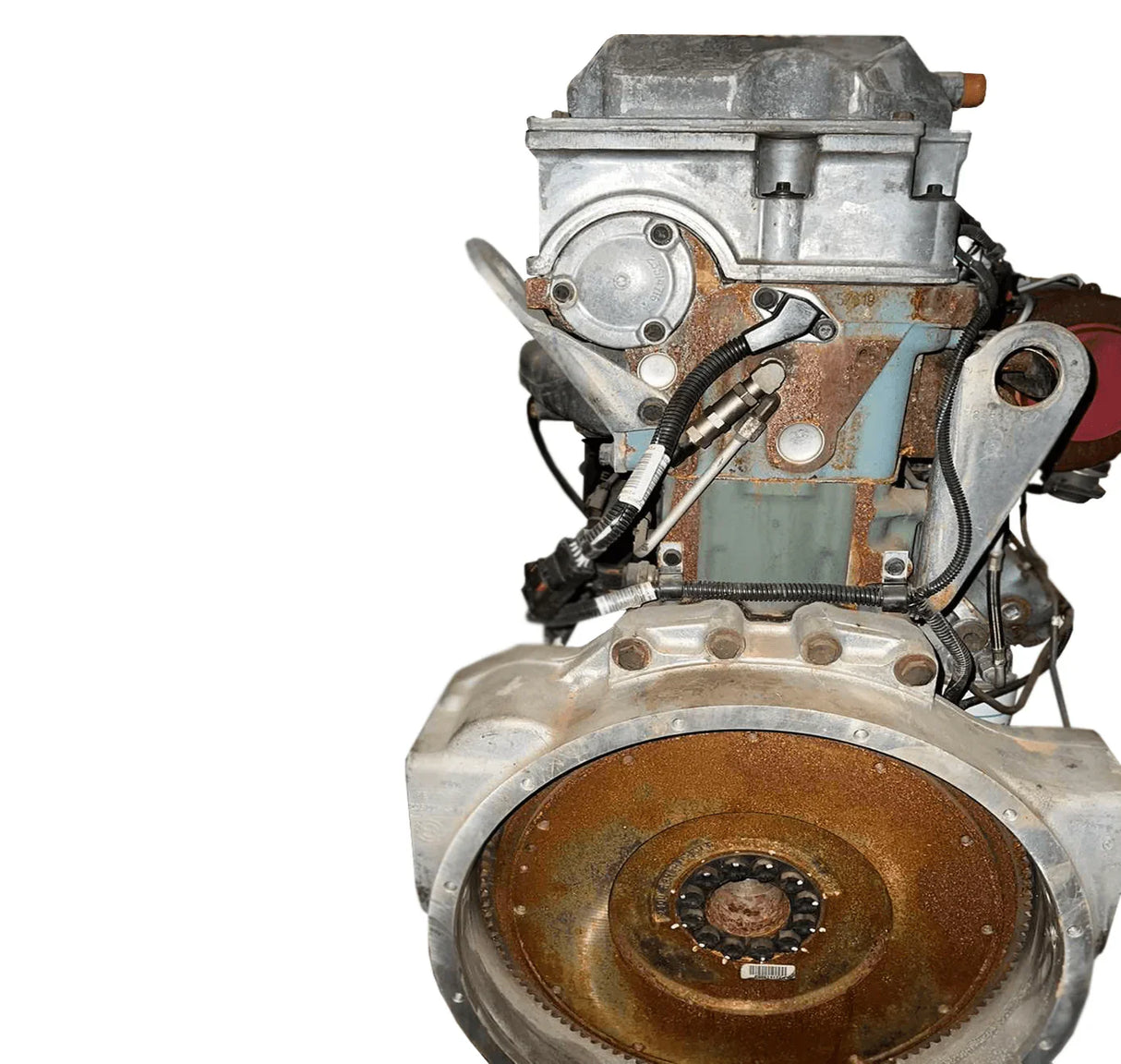

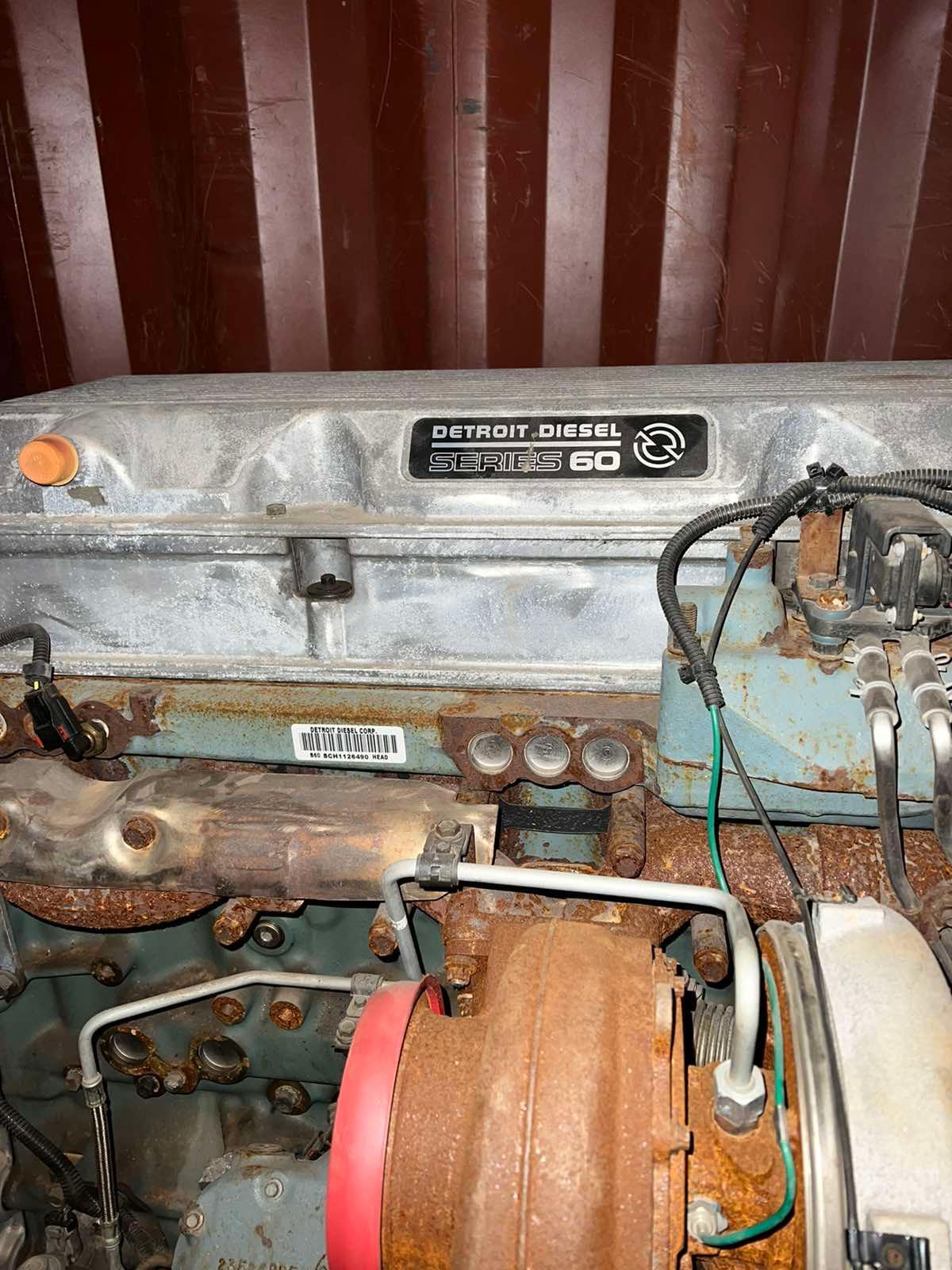

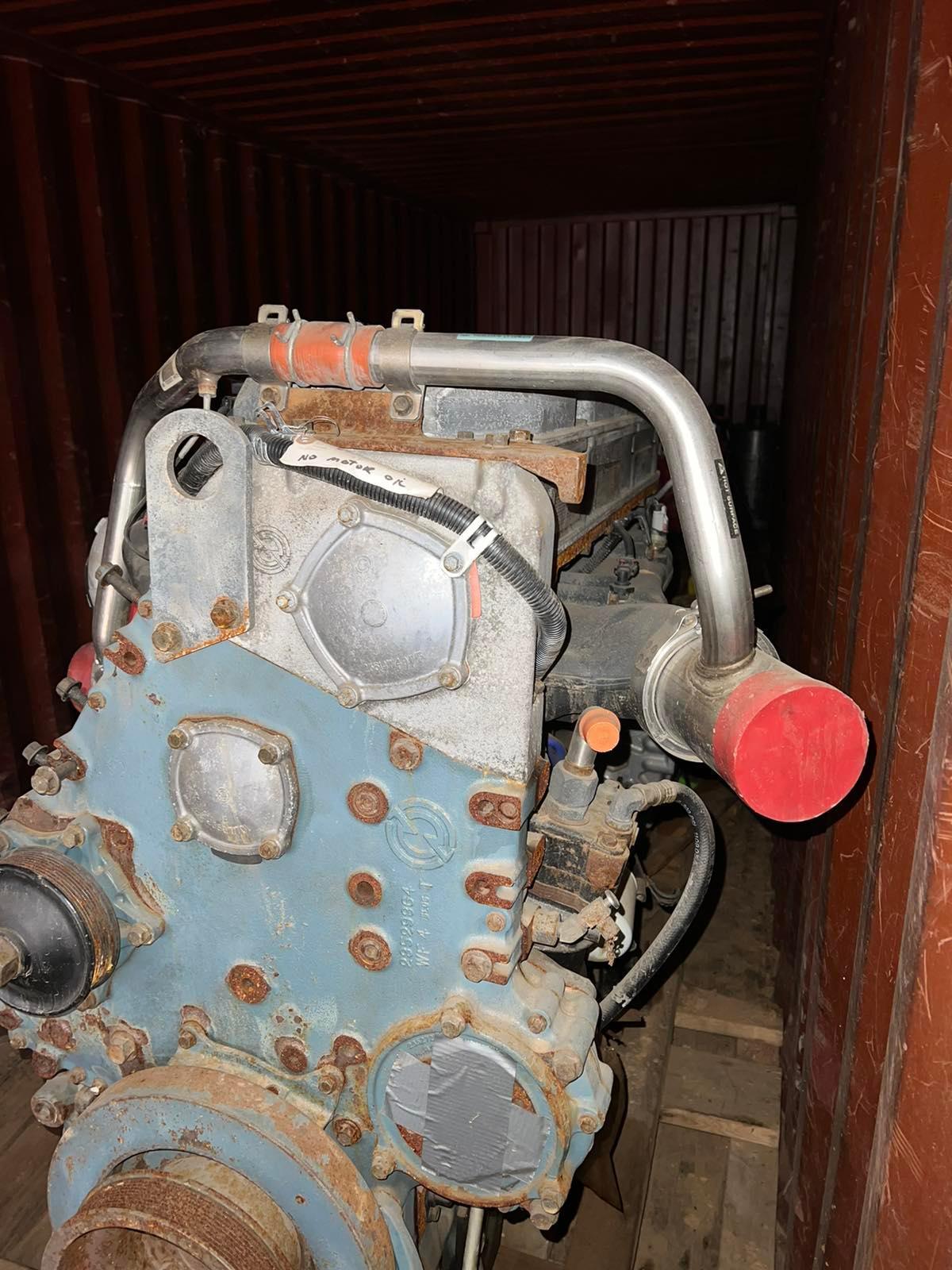

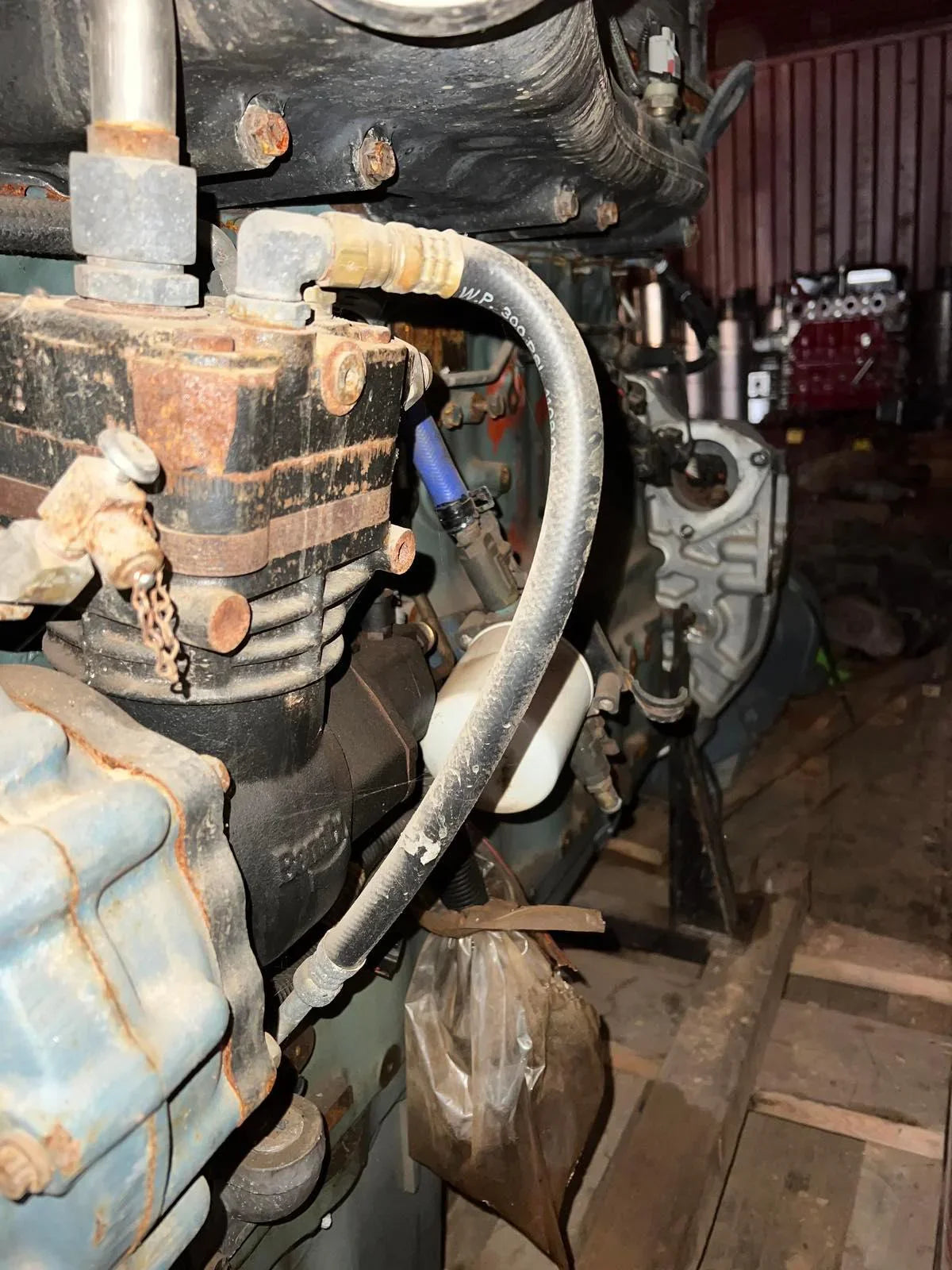

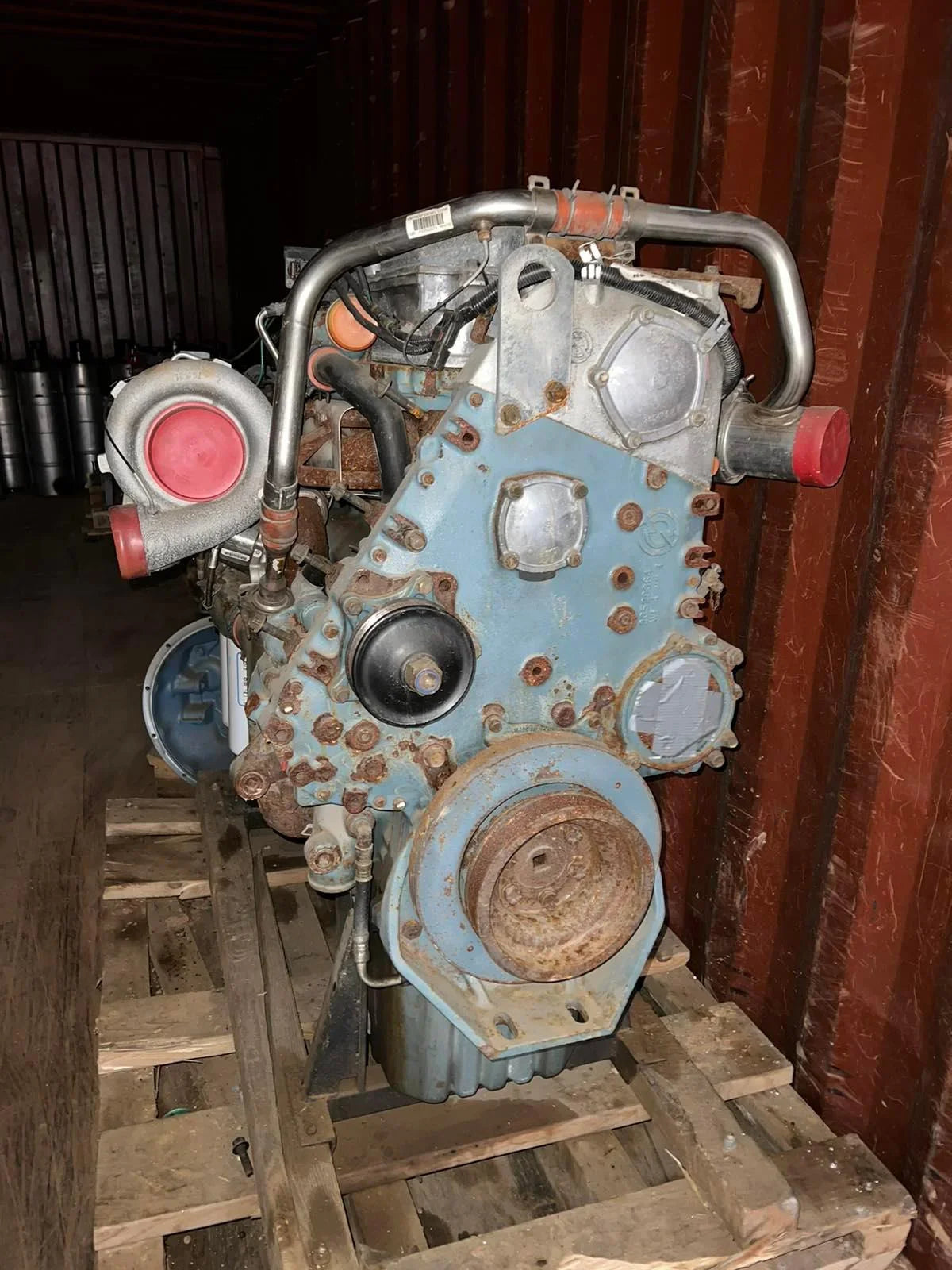

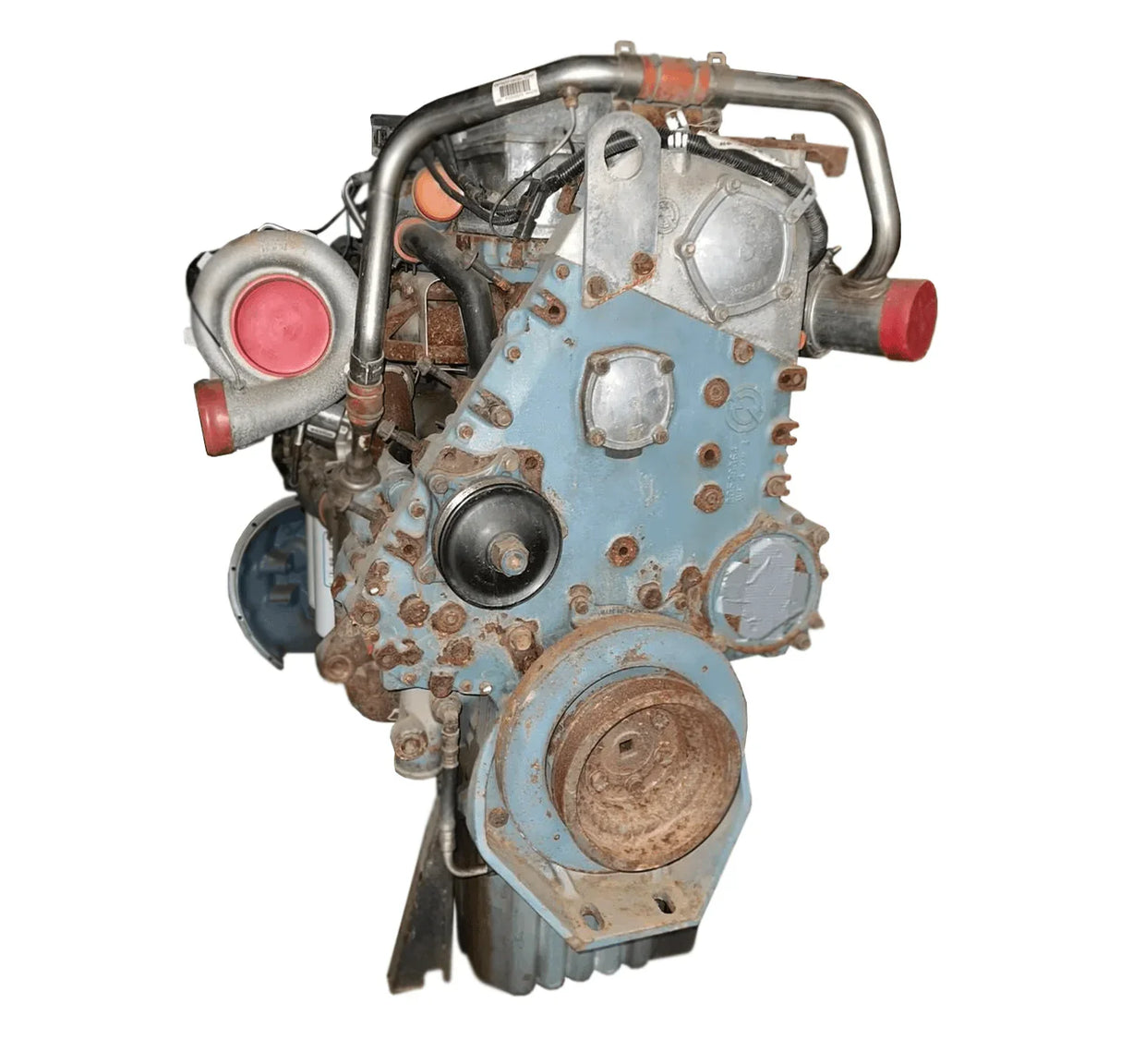

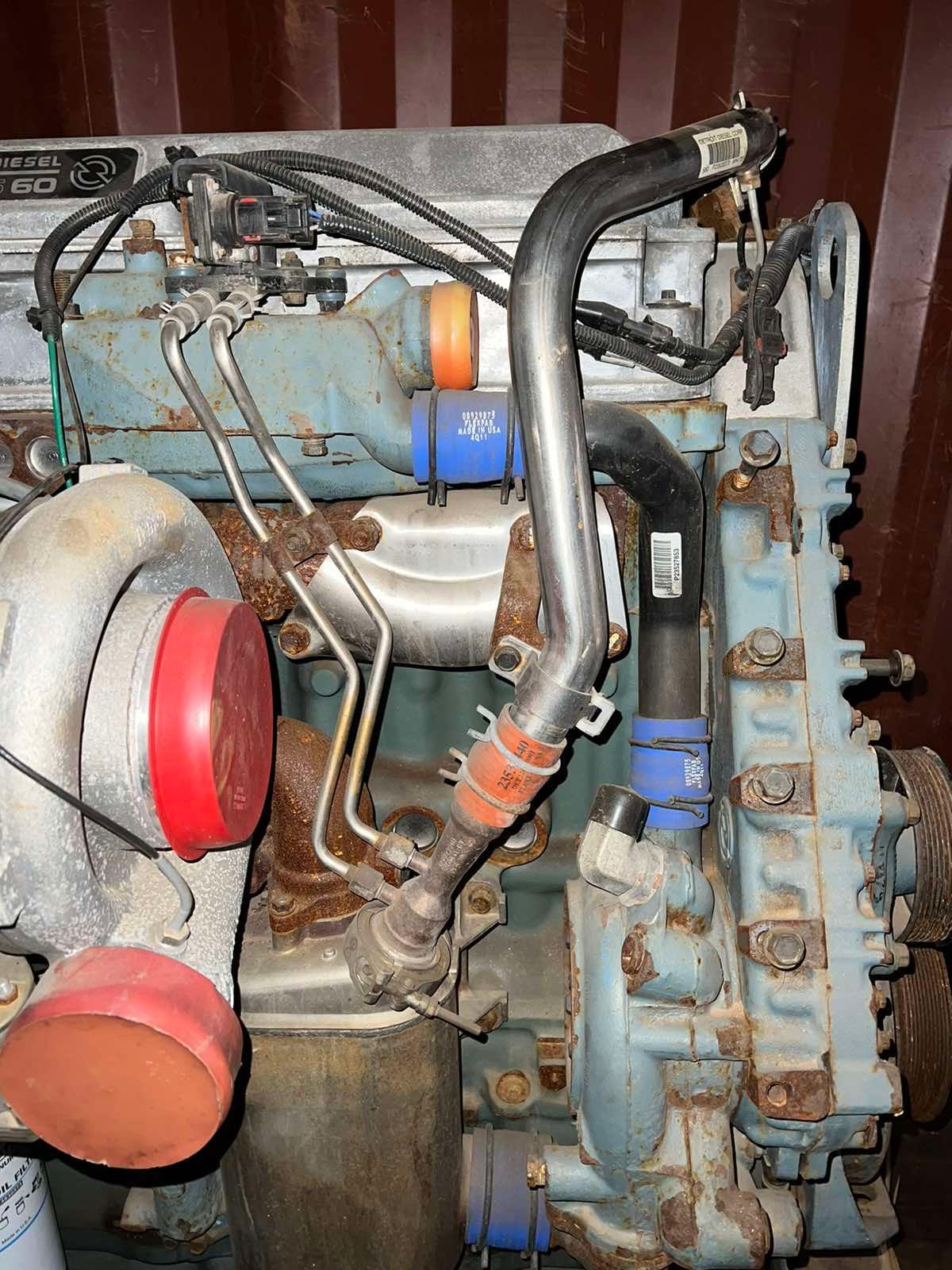

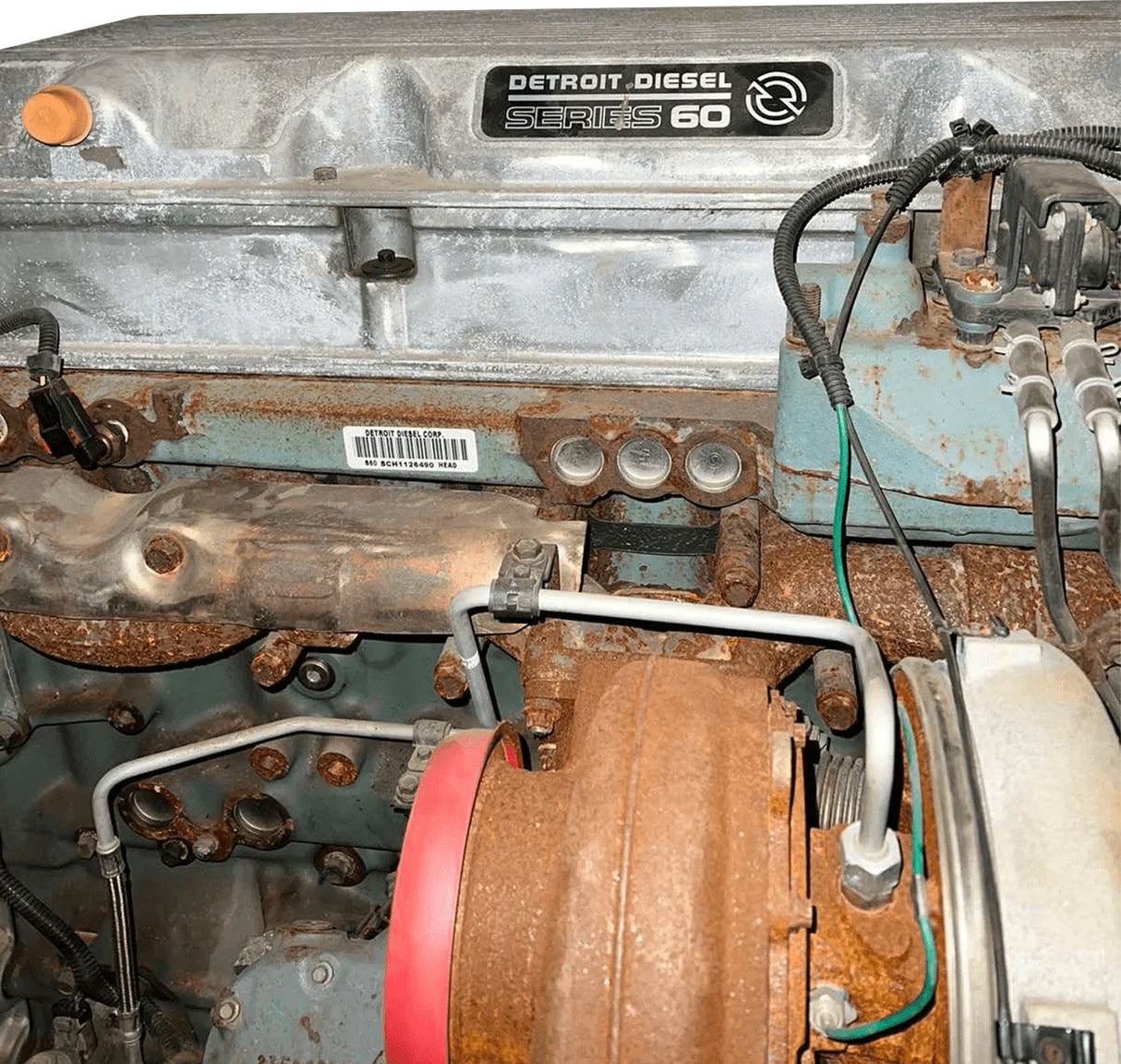

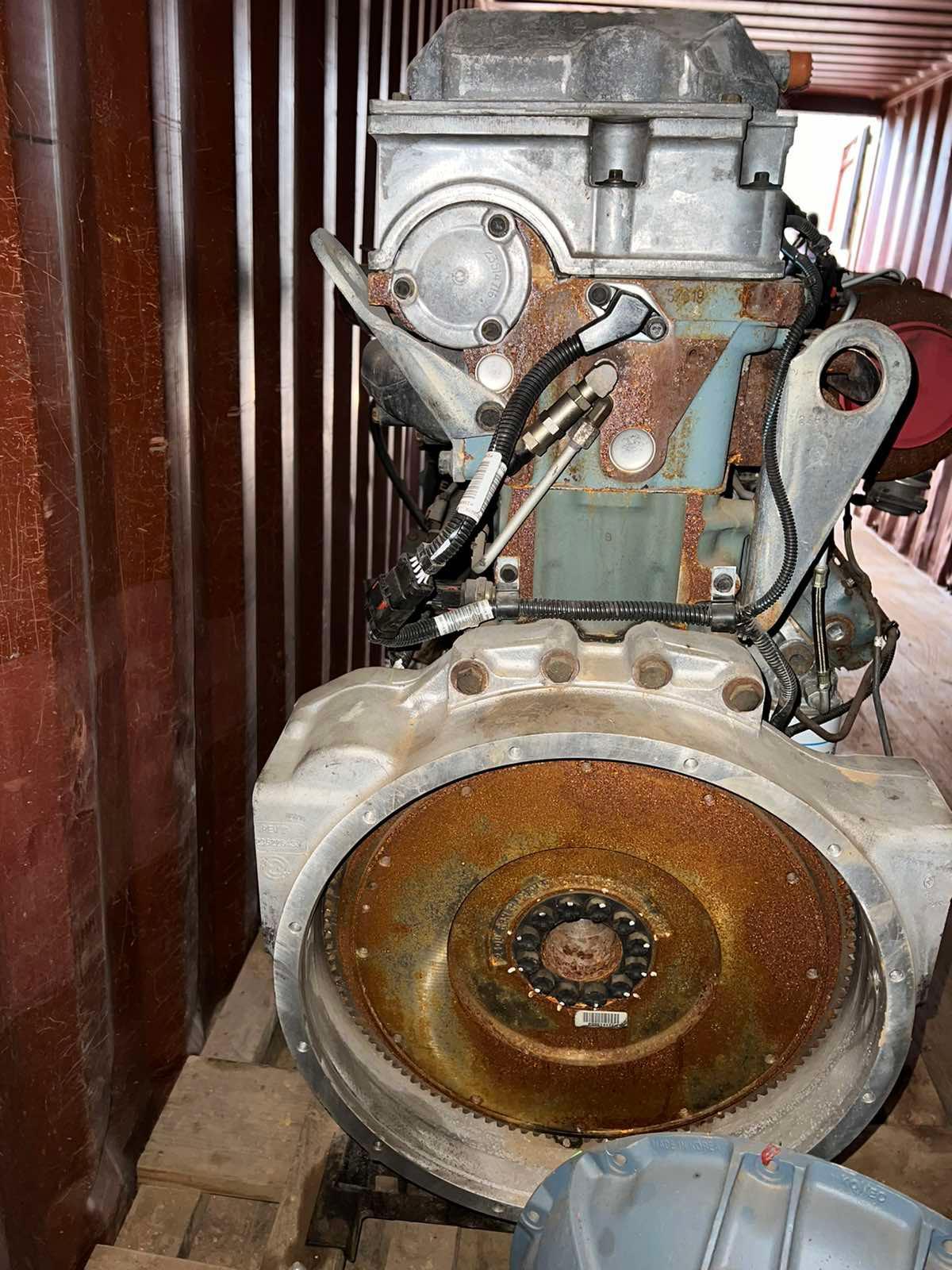

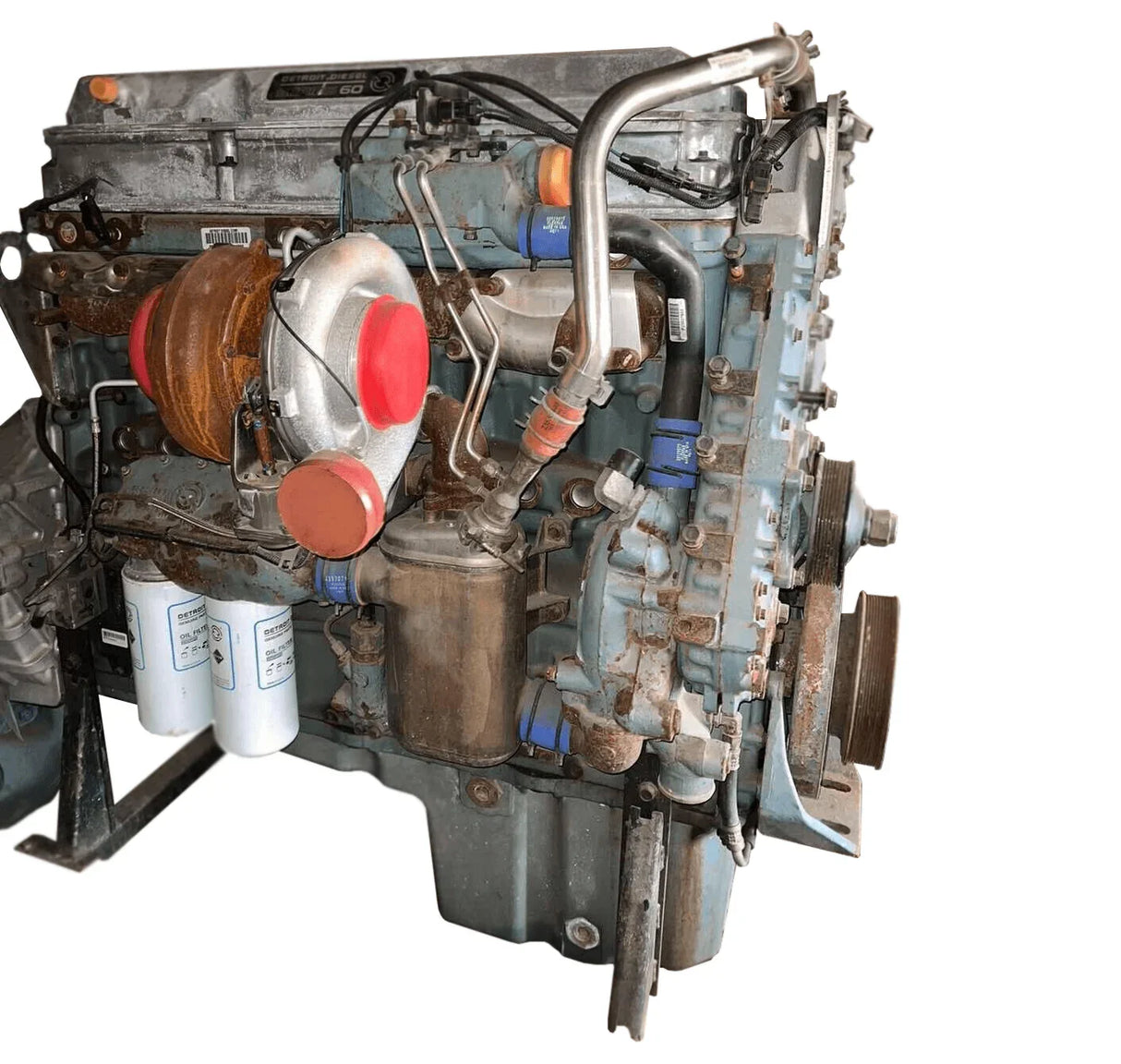

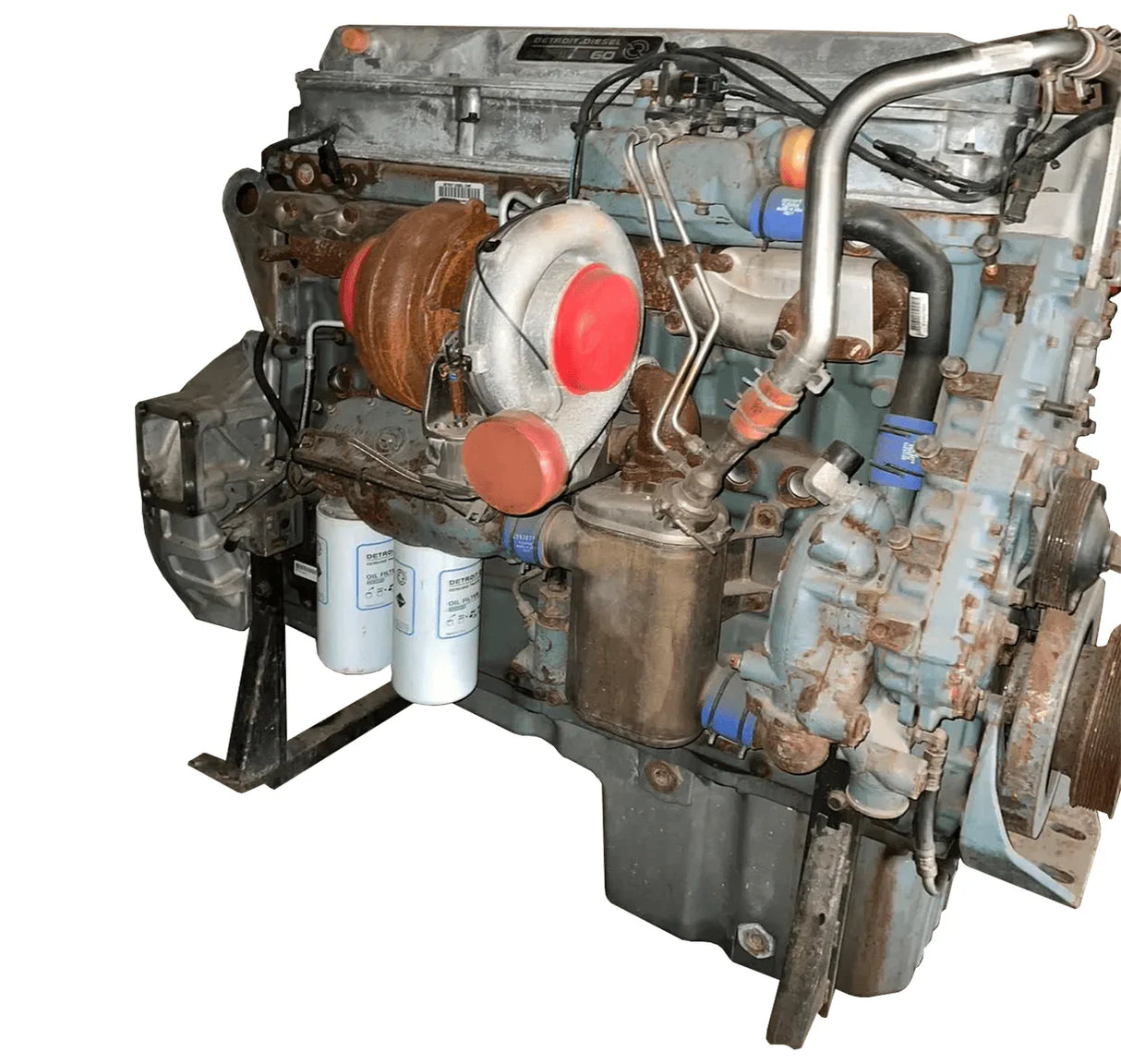

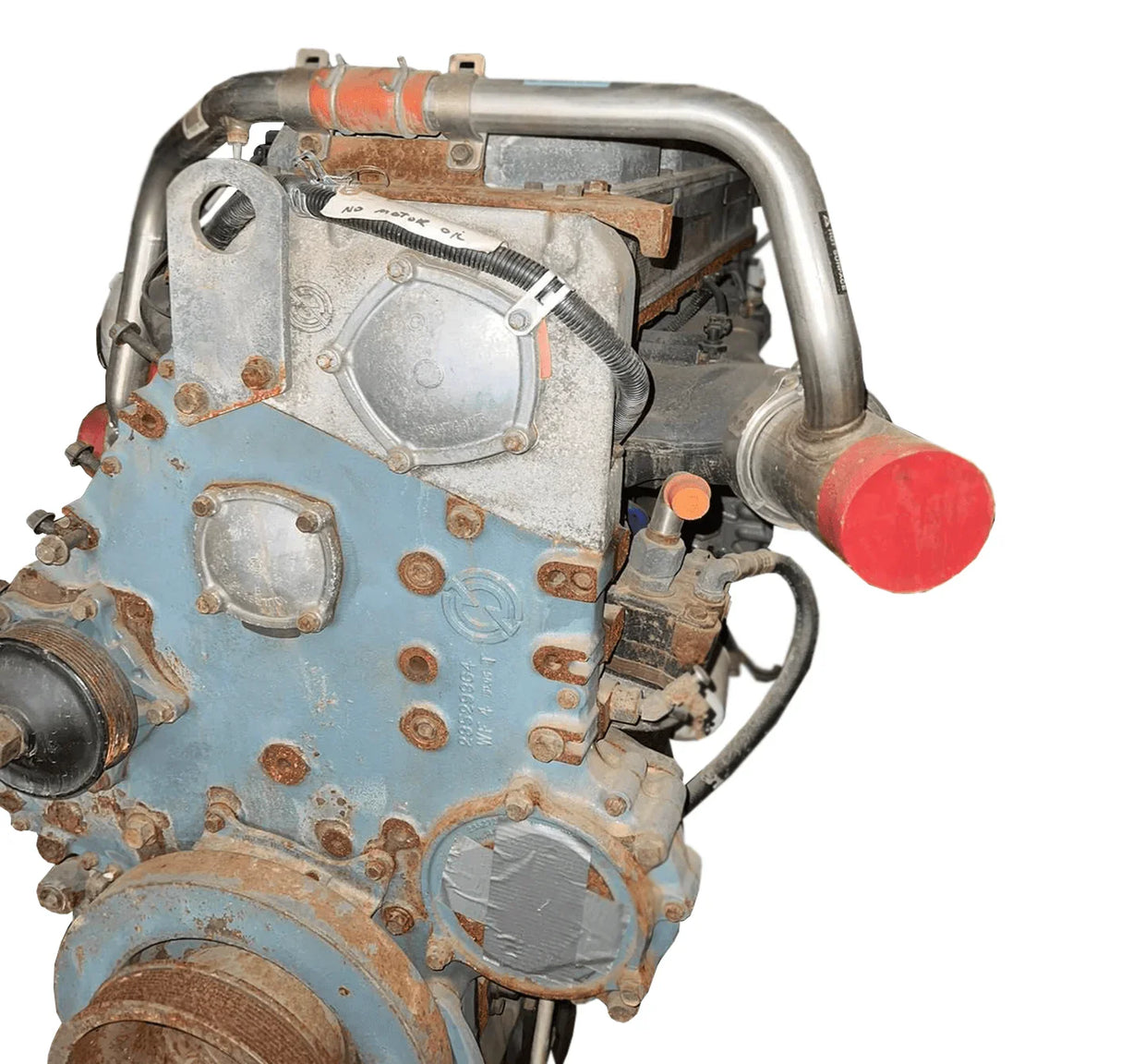

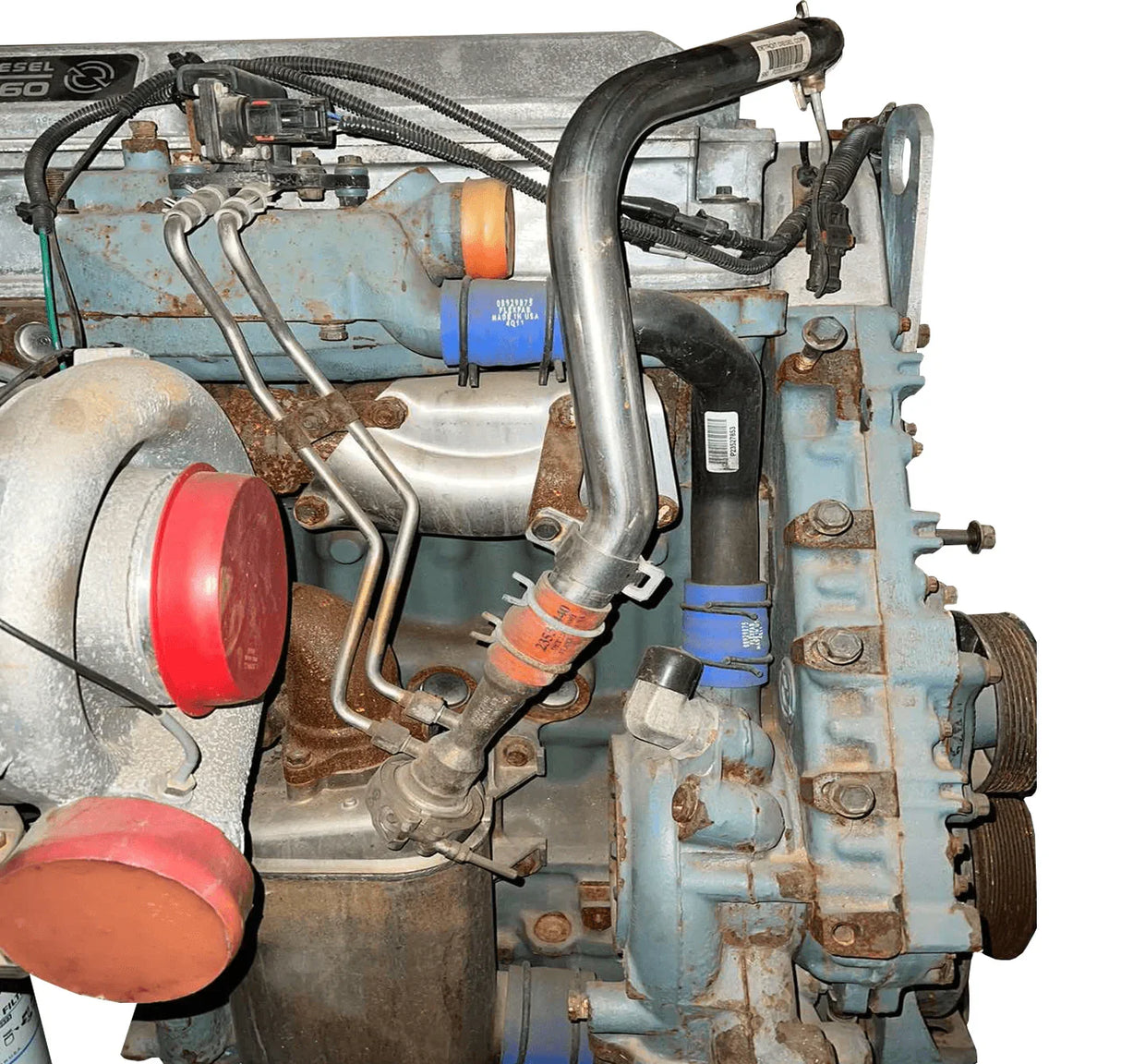

Genuine 2005 Detroit Egr Engine Series 60 Long Block 12.7L 455Hp 1800Rpm

11.1L Detroit 60 Series

12.7L Detroit 60 Series

14.0L Detroit 60 Series

Manufacturer:

Detroit Diesel

Applications:

1987 - 1997, various on/off highway

1987 - 2007, various on/off highway

2001 - 2011, various on/off highway

Engine Type:

4 cycle turbodiesel, wet cylinder liners

Configuration:

Inline 6 cylinder

Displacement:

677 CID, 11.1 liters

778 CID, 12.7 liters

858 CID, 14.0 liters

Firing Order:

1 - 5 - 3 - 6 - 2 - 4

Engine Block:

Cast iron, wet cylinder liners, 7 main bearings

Cylinder Head:

Cast iron, overhead cam

Compression Ratio:

16.0 : 1

15.0 : 1 or 16.5 : 1

15.0 : 1 or 16.5 : 1

Cylinder Bore:

5.12 in (130 mm)

5.12 in (130 mm)

5.24 in (133 mm)

Cylinder Stroke:

5.47 in (139 mm)

6.30 in (160 mm)

6.62 in (168 mm)

Valvetrain:

Overhead camshaft, roller follower rocker arms, 4 valves per cylinder (2 intake, 2 exhaust valves per cylinder)

Injection:

Electronically controlled EUI (electronic unit injector) injection system (see DDEC section below)

Aspiration:

Turbocharged, air-to-air intercooler

Engine Dimensions (approx.):

Length - 57 in

Width - 34 in

Height - 50 in

Engine Weight (approx):

2,675 lbs

2,800 lbs

2,800 lbs

Rated Horsepower:

250 - 350 hp @ 1,800 RPM

380 - 455 hp @ 1,800 RPM

425 - 515 hp @ 1,800 RPM

Rated Torque:

1,100 - 1,250 lb-ft @ 1,200 RPM

1,350 - 1,550 lb-ft @ 1,200 RPM

1,550 - 1,650 lb-ft @ 1,200 RPM

Max Engine Speed:

2,100 RPM (some continuous duty applications may be governed at 1,800 RPM)
