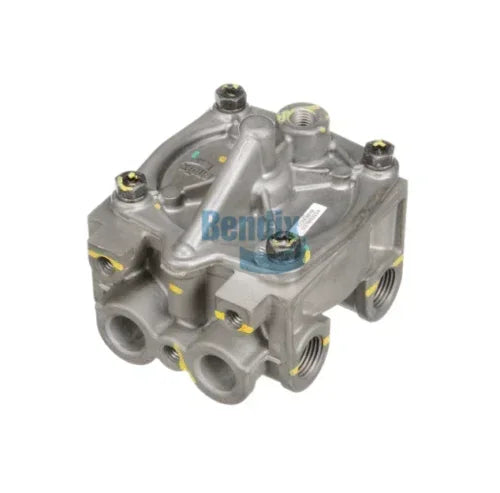

060-801742 Genuine Bendix R-12P Air Brake Relay Valve

Description: R-12P Air Brake Relay Valve

Condition: New

Brand: Bendix®

Part Number: 060-801742

Other Oem Part Numbers That Will Work: 060-801742, 801742, 745-801742, TWDBEN801742, BEN801742, BAN801742, BX801742, ZAC801742, BW801742, 25110650, 702383AT


Mounting
3/8-16 UNC-2B (3x)
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 5 DEL (5H)
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Internal Supply Passage to Cover
Yes
Control / Secondary Service Port
1/4-18 NPT
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
Cored Closed
Delivery Port 4
Cored Closed
Delivery Port 5
1/4-18 NPT
Exhaust Port
Dust Shield
Crack Pressure
0.0 PSI
TMC Washer
RD000
Maximum Operating Temperature
200 °F (93 °C)
Minimum Operating Temperature
-40 °F (-40 °C)
